Self-Service Kiosk Screen Size and Peripheral Load: Sizing a 15.6"–21.5" Unit Against Cash, Print and Scan Queues

Editorial Team September 15, 2026

Self-service kiosk screen size and peripheral load are one decision, not two. Size the peripheral stack first, then the counter geometry, then the screen. A 15.6-inch unit carries one payment step and one print output; a 21.5-inch unit carries two or more simultaneous peripheral interactions. Choosing the display before the module list is how projects end up with a cash acceptor nobody can reach.

Why Screen Size Should Be the Last Decision, Not the First

Work backwards from the module list. The peripheral stack determines how much vertical space the transaction zone needs, that footprint determines whether a countertop or freestanding enclosure fits the room, and only then does the minimum diagonal become obvious. Buyers who start with a screen size are usually re-specifying the cabinet three months later.

Much of the current guidance pushing compact transactional formats originates from hardware supplier marketing and is undated, so treat it as a commercial signal rather than an established standard. The traceable configuration guidance available today comes from custom-hardware sources that are still supplier-published rather than independent measurement, and it should be read that way: a ^[1] lists screen sizes, peripheral module lists and cash acceptor capacity as quote-request line items rather than as verified field results.

The Peripheral Stack Sets Your Minimum Screen Size

Build the kiosk peripheral module list before you open a display catalogue. Each module consumes either reachable touch area, sightline, or both, and kiosk peripheral integration is the discipline of not letting two modules claim the same zone.

Peripheral class	What it consumes	Sizing consequence
Note / coin acceptor	Dwell time at the payment zone	The user cannot look up while feeding notes, so the transaction zone and the touch area must not compete for the same vertical space
80 mm thermal receipt printer	Paper path and exit angle	Receipts must exit outside the user’s centre sightline or they are left behind
EMV contact / non-contact reader	Reach depth and insertion angle	Pushes the payment plane forward, which pulls the screen further from the user
ID / passport or QR scanner	Scan plane within the comfortable reach band	Must be usable standing and seated without redesigning the enclosure
Camera	Height and downward tilt	Fixed early; rarely adjustable after the cabinet is cut

The decision rule that follows: a single peripheral set can live on a 15.6-inch diagonal because one guided interaction fits the touch area. A stacked peripheral set — payment plus print, or scan plus print — needs 21.5 inches so the prompt, keypad and status can share the screen without shrinking buttons. A full public-service set with cash, print, scan and identity verification belongs on 21.5 inches or larger, and commonly on a freestanding enclosure rather than a countertop.

15.6” vs 21.5”: What Actually Changes at Counter Height

The 15.6 inch vs 21.5 inch kiosk choice is not about image quality. It is about how many things the user must watch at once while their hands are occupied.

15.6 inches. At a standing counter, the reachable touch area covers roughly the lower two-thirds of the display before the user has to step back or stretch. That is enough for a payment keypad plus a prompt, but adding a live status line for a printer squeezes the keys toward the minimum comfortable touch target. Sightline sits slightly below eye level at standing height, which is workable when the interaction is short.

21.5 inches. The extra diagonal buys vertical room, not just width: a payment keypad, a prompt panel and a receipt or scan status indicator can sit in three distinct bands. The screen centre lands closer to eye level at standing height, which matters because a downward look pulls attention away from a cash acceptor the moment the user needs both.

The plain rule: choose 15.6” when the transaction has one payment step and one print output. Choose 21.5” when two or more peripheral interactions must be guided on-screen at the same time. Screen size and peripheral load simply will not reconcile any other way at counter height.

Countertop or Freestanding: A Seating and Sightline Checklist

This is part one of the planning asset. Work down the list and record the decision each item drives.

Measured counter height at the deployment site. Drives countertop vs tabletop: a counter above roughly 900 mm pushes the display into a downward-look posture for shorter users.
Whether the queue stands or is partly seated. Drives freestanding: seated users need a knee recess a countertop unit cannot provide.
Reach envelope at the 5th and 95th percentile user. Drives display height and scanner placement.
Whether a stool or wheelchair approach must be accommodated. Drives freestanding with an approach recess.
Clear floor area in front of the unit. Drives countertop only if the standing zone stays clear of the circulation path.
The peripheral requiring the most user dwell time. Drives screen size: the longest dwell device sets the guided-interaction count.
Whether the enclosure must absorb a note acceptor and a coin path in a single vertical run. Drives cabinet depth and whether a countertop unit is viable at all.

Planning example — clinic registration desk. A registration counter at 950 mm with a mixed standing and seated queue, and a workflow of QR scan, ID scan and receipt, resolves to a tabletop unit on a lowered side shelf, because items 2 and 4 rule out a single countertop enclosure and items 6 and 7 keep the module count at three. Read the ^[2] as a supplier-published starting point, not a finished specification.

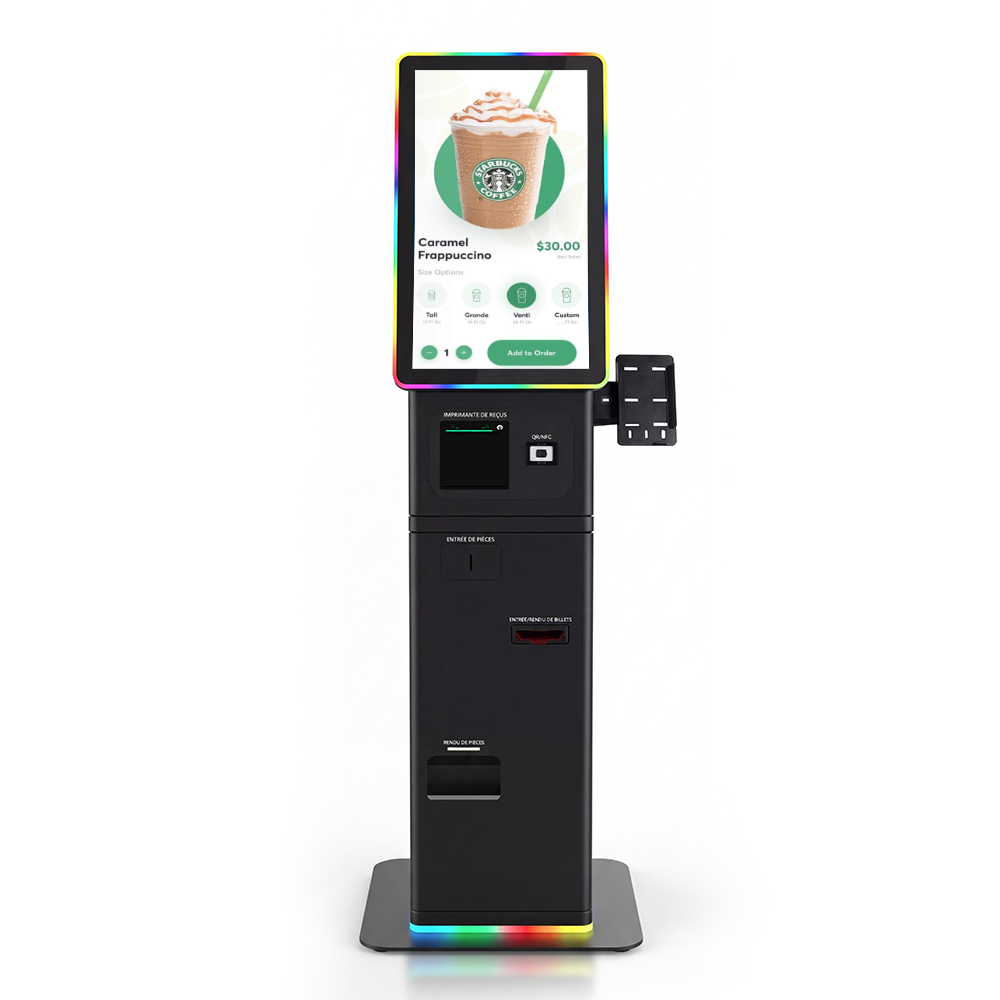

Planning example — transit ticket hall. A hall with an all-standing queue, a clear 1.5 m approach zone and a cash plus card plus printed ticket workflow resolves to a freestanding enclosure, because item 7 forces a vertical cash run that a countertop shell cannot carry. Supplier configuration tables place transit and government permit terminals on 21.5”–32” floor-standing shells for exactly this reason ^[2].

Both examples are planning illustrations, not measured installations. Confirm any derived geometry against a physical mock-up before drawings are frozen.

Specifying Cabinet Internal Volume for Each Peripheral Module

This is part two of the planning asset: kiosk enclosure internal volume specification, module by module. Depth and volume allowances below are planning estimates for an attended indoor environment and need confirmation against the actual module datasheets.

Module	Depth allowance	Volume allowance	Service access requirement	Notes
Note / coin acceptor + cash box	Deepest single module; add the note path length	Largest continuous void in the cabinet	Front or rear lockable door reaching the cash box	Cash path cannot share space with anything that moves
80 mm thermal printer + roll	Roll diameter plus exit angle	Dedicated block above the roll	Hinged panel for roll replacement	Roll replacement access itself consumes enclosure space
EMV reader bracket	Bracket depth plus insertion clearance	Small but position-locked	Usually accessed from outside	Position is fixed by reach, not by free volume
ID / passport scanner	Scan plane plus lid or slot throw	Moderate, orientation-critical	Front access for cleaning	Cannot be relocated after the touch height is set
Compute module	Board plus connector clearance	Fixed block with airflow gap	Slide-out tray or removable panel	Heat path changes if a late module blocks it
Power supply and cable routing	Shared void behind modules	Routing void throughout	Accessible for re-termination	Splits when a cash path is added mid-project

Two rules decide most of this table. Volume for a cash path and volume for a paper path cannot be shared, because both need a continuous clear channel and neither tolerates a foreign object in the run. And access for roll replacement drives a door or panel decision that itself consumes enclosure space — a panel is not free space, it is removed from the usable interior.

That is why an added module late in a project rarely fits into residual volume. Once doors, airflow gaps and cable routes are placed, residual volume is usually a thin void between fixed blocks.

Who Re-Specifies When the Module List Changes Mid-Project

Volume specification should be owned by whichever party signs the enclosure drawing, and no peripheral addition should be accepted verbally.

Change type	Owns the re-specification	Must be notified	Freeze before sign-off
Added payment module	Enclosure drawing signatory	Integrator, cash-handling supplier	Cash path and door position
Added ID scanner	Enclosure drawing signatory	Integrator, software lead	Scan-plane height and touch height
Cash dispenser substitution	Integrator	Buyer, hardware partner	Cash cassette depth and access panel
Printer model change	Hardware partner	Integrator, drawing signatory	Roll diameter and exit angle

Screen size and peripheral load should be re-checked at every one of these changes, because a dispenser substitution can invalidate a diagonal that was correct at the previous module list.

Frequently Asked Questions

Can a 15.6-inch kiosk support cash acceptance and printing? It can when cash acceptance is a single step and the printer output is the only confirmation the user must watch. If the workflow adds an ID scan or a live dispenser status, the guided-interaction count reaches three and the keypad loses touch-target size. Move to 21.5 inches in that case.

How many peripherals can a countertop kiosk hold? Two to three, provided one of them is not a full cash path. A countertop shell has enough interior for a card reader, a scanner and a small printer. A note acceptor with its cash box, or any coin path, usually forces a freestanding or side-cabinet arrangement.

Which form factor suits hospital self check-in? A wall-mounted or tabletop unit at 15.6”–21.5” suits most registration desks, because the workflow is QR scan, ID scan and a printed confirmation (a ^[2] groups hospital self check-in at exactly that size band). Where the queue is partly seated or wheelchair access is required, specify a tabletop on a height-adjustable shelf rather than a countertop cut into the desk.

Turning the Worksheet Into a Procurement Question

The order reverses three times, and each reversal is a question you can put to a supplier. Peripheral stack first: which modules, and which one sets the dwell time. Counter geometry second: measured counter height, queue posture and approach clearances. Screen size third: derived from the first two, not chosen from a catalogue.

Use the completed worksheet as the technical annex to your quote request, and compare module trade-offs commercially in our cash vs cashless payment module breakdown. If the kiosk must also clear accessibility and language requirements, fold in the compliance requirements for kiosk accessibility before the enclosure drawing is signed.

Content reviewed: 2026-09-15.

Evidence confidence

Confidence: Medium. This rating reflects cross-checking 2 sources across 2 independent domains. It measures evidence coverage, not certainty; verify safety-critical work against manufacturer instructions and local requirements.
